Digital Pressure Gauge Temperature Effects

Why Temperature Changes Pressure Measurement Performance

Temperature is a major environmental variable in pressure measurement. It can influence the sensing element, internal electronics, seals, fill fluids, mechanical movement, display materials, housing, and process connection. For a digital instrument, the resulting digital pressure gauge temperature effects may appear as a temporary reading shift, slower response, display problems, communication faults, or, in more severe cases, permanent damage.

Not every temperature-related issue has the same consequence. A gauge may show a reversible error when its temperature changes and then return to normal performance after reaching thermal equilibrium. For example, a sensor may temporarily drift while hot process media heats the pressure connection and sensing element. In contrast, prolonged overheating can harden elastomer seals, degrade fill fluids, damage display components, alter electronics, or permanently change sensor calibration.

Temperature tolerance also cannot be reduced to one universal limit. Acceptable conditions depend on the gauge design, pressure range, sensor technology, wetted materials, enclosure, display type, seals, electrical components, and manufacturer specifications. A pressure instrument may have separate ratings for ambient operating temperature, process temperature, compensated accuracy range, and storage temperature. All of them matter.

Thermal Expansion, Material Changes, and Sensor Drift

A pressure gauge measures pressure by detecting a physical change. In mechanical gauges, pressure deflects an elastic element such as a Bourdon tube, diaphragm, or capsule. In digital gauges, the sensor may use strain gauges, thin-film elements, piezoresistive components, capacitive sensing, or another electronic measurement method.

Temperature can alter the physical and electrical properties involved in that measurement:

Metals expand and contract, changing component dimensions and mechanical stress.
Elastic sensing elements can become slightly more or less compliant as temperature changes.
Electrical resistance in sensor circuits and wiring can shift.
Electronic reference components and analog-to-digital conversion circuits can drift.
Seals, adhesives, fill fluids, and potting materials may soften, stiffen, expand, or contract.
LCD displays may become sluggish in cold conditions or difficult to read at elevated temperatures.

These changes can cause zero shifts, span shifts, slower response, or changes in the displayed pressure value. The effect is often most noticeable when a gauge experiences a rapid change in process or ambient temperature.

Thermal equilibrium is important. If a gauge is installed on hot piping, the process connection may heat quickly while the body, electronics, and display remain near ambient temperature. This creates a thermal gradient inside the instrument. Until the entire assembly stabilizes, the gauge may not behave the same way it would under steady conditions.

Digital instruments can use temperature compensation algorithms to correct predictable sensor behavior. However, compensation does not make the instrument immune to temperature. Published accuracy specifications still apply only within the stated compensated operating-temperature range, and large or rapidly changing temperature differences may exceed the conditions assumed by the compensation model.

Temperature Effects on Pressure Gauges

Pressure gauges have defined temperature limits because excessive heat or cold can affect both measurement performance and physical integrity. Operating outside the stated limits may reduce accuracy, slow response, shorten service life, or cause damage.

High temperatures can affect several parts of a pressure gauge:

Dial markings or labels may discolor or deteriorate.
Gaskets and elastomeric seals may harden, crack, or lose sealing performance.
Windows can soften, haze, deform, or become more vulnerable to damage, depending on their material.
Fill fluid in liquid-filled gauges may expand, thin, thicken, or degrade.
Calibration can shift because the sensing element and internal components no longer behave as they did at the calibration reference temperature.
Digital displays, batteries, circuit boards, and connectors may have lower temperature limits than the wetted pressure sensor.

Low temperatures can also cause problems. Fluids can become more viscous, seals can stiffen, and display response can slow. In dry mechanical gauges, cold conditions can make the movement respond more slowly. A liquid-filled gauge can experience even greater damping if the fill fluid becomes highly viscous. For electronic instruments, severe cold can affect display readability, battery capacity, and electronic response.

When sustained process temperatures exceed the gauge rating, thermal isolation is usually necessary. Depending on the application, this may involve a remote mounting arrangement, capillary line, siphon, cooling element, diaphragm seal, or a different pressure instrument configuration designed for the service.

Ambient Temperature Around the Instrument

Ambient temperature is the temperature of the air surrounding the pressure gauge or pressure instrument. It is distinct from process temperature, although both may influence the gauge at the same time.

A gauge can be exposed to elevated ambient conditions from:

Furnaces, ovens, kilns, boilers, and heat-treatment equipment
Engines, compressors, turbines, and pumps
Steam lines and hot process piping
Electrical cabinets and enclosed equipment rooms
Direct sunlight or reflected solar heat
Poorly ventilated control enclosures

Outdoor installation requires equal attention to cold exposure. Winter conditions, wind chill effects on exposed housings, snow accumulation, icing, and freeze-thaw cycling can affect the display, seals, wiring, and enclosure. Direct sun can create a high local instrument temperature even when the reported outdoor air temperature appears moderate.

Instrument location matters. A gauge installed only a short distance from a hot pipe, engine exhaust, or uninsulated vessel may see a much higher ambient temperature than the general area. Likewise, a gauge inside an enclosure may be warmer than the surrounding plant environment because of internal electronics or limited ventilation.

Process Temperature at Wetted Parts

Process temperature is the temperature of the measured fluid, gas, vapor, or slurry in contact with the instrument’s wetted components. In a digital pressure gauge, exposed parts may include the process connection, sensor diaphragm, pressure port, internal wetted passageways, and, depending on construction, other sensor surfaces.

For mechanical gauges, wetted parts commonly include the process connection, Bourdon tube, socket, and tip components. The process medium can transfer heat through these parts directly into the gauge body.

Process temperature is often more difficult to control than ambient temperature because the medium may be steam, hot oil, molten material, refrigerant, cryogenic fluid, combustion gas, or another extreme-temperature service. A gauge may be suitable for a moderate ambient environment but unsuitable for direct connection to a hot or cold process line.

Protection is needed when the medium temperature exceeds the supplier’s stated limit for the pressure instrument or its wetted materials. The protection method must address not only the gauge but also the complete pressure path, including fittings, impulse tubing, seal fill fluid, valves, and process connection hardware.

Storage Temperature Requirements

Storage limits are separate from operating limits. A gauge that can tolerate a certain temperature while powered and installed may have different restrictions during transport or long-term storage.

Storage-temperature capability varies with the instrument design and configuration, including:

Electronics and display materials
Battery type, where applicable
Fill fluid
Seal and gasket materials
Window material
Diaphragm seal system and fill fluid
Enclosure design and moisture protection

Pressure instruments should generally be stored indoors in a clean, dry, ventilated location. Condensation and excessive humidity should be prevented, especially where cold instruments may be moved into warm, humid air. Moisture can affect electrical terminals, connectors, display assemblies, and internal metal parts.

Always use the applicable product datasheet for configuration-specific storage limits. There is no universal storage range that applies to every digital pressure gauge.

Temperature Compensation in Pressure Instruments

Temperature compensation reduces measurement error caused by changes in instrument temperature. It does not necessarily eliminate all error, especially when conditions are outside the compensated range or when temperatures change too quickly for the instrument to stabilize.

Mechanical and electronic instruments use different approaches. Mechanical designs may use material selection, movement design, case-pressure management, or temperature-compensated mechanisms. Digital pressure instruments can use internal temperature sensing, calibration data, and software-based correction.

Compensation in Mechanical Pressure Gauges

Mechanical gauges are affected when the elastic pressure element and movement operate at temperatures different from their reference calibration condition. Changes in material elasticity can alter the relationship between applied pressure and pointer movement.

Some sealed or solid-front gauge designs use an elastomeric rear diaphragm or bladder. This component can accommodate case-pressure changes caused by internal temperature variation. Without a means of equalizing or managing internal case pressure, heating and cooling of the gauge case could introduce unwanted forces that influence the measurement mechanism.

Temperature-compensated movements can further reduce error by using components selected or arranged to offset predictable temperature-related changes. These methods improve stability but do not remove the need to follow the instrument’s published temperature limits.

Applicable pressure-gauge standards provide guidance related to sealed cases and temperature error. Requirements and terminology can change between editions, so current standards and manufacturer documentation should be consulted rather than relying on generalized assumptions.

Compensation in Digital and Electronic Pressure Instruments

Digital pressure gauges may measure internal instrument temperature and apply a correction to the pressure signal. During factory calibration, the manufacturer can characterize how the sensor output changes over temperature and use that information to adjust the displayed or transmitted value.

This approach is most reliable when temperature changes gradually and the instrument has time to reach thermal equilibrium. If the sensing element, electronics, housing, and surrounding air are all near a stable temperature, the correction can address predictable sensor drift effectively.

Rapid process-temperature changes are more difficult. A hot medium may heat the process connection and sensor diaphragm before the electronics or housing warms. Conversely, a sudden cold process can cool the wetted sensor area while the display and circuit board remain warm. These gradients mean that the internal temperature measurement may not fully represent the temperature of every critical component.

For applications with large, rapid temperature swings, compensation alone may not be enough. Remote mounting, a diaphragm seal, impulse tubing, thermal shielding, insulation, or other thermal-management measures may still be required.

Methods for Reducing Temperature Effects

Installation design can often reduce temperature exposure more effectively than relying on compensation alone. The objective is to keep the pressure instrument and its critical components within their rated conditions while maintaining an acceptable pressure response time and measurement quality.

Common strategies include remote mounting with capillary lines, direct mounting with heat-dissipation accessories, and diaphragm seal assemblies.

Remote Mounting With Capillary Lines

Remote mounting moves the instrument away from hot or cold process media and from nearby ambient heat sources. The gauge is installed on a bracket, panel, or other supported location, while a capillary tube or impulse line maintains the pressure connection to the process.

A capillary line can provide thermal isolation because it increases the distance between the process connection and the gauge. Its exposed surface area allows heat to transfer between the line and surrounding air, helping the temperature at the instrument connection move closer to ambient conditions.

The actual result depends on several factors:

Capillary length, diameter, wall thickness, and material
Process temperature and surrounding ambient temperature
Routing and exposure to air flow, insulation, or radiant heat
Pressure medium and its thermal properties
Whether the line is filled with gas, liquid, condensate, or seal fluid
Required response time and permissible pressure drop
Mechanical support and vibration exposure

Longer tubing may improve thermal isolation, but it can also increase response time and introduce installation complexity. The tubing must be compatible with the pressure, medium, corrosion conditions, and expected temperature range. A remote-mounted gauge also needs suitable support so tubing movement or vibration does not load the instrument connection.

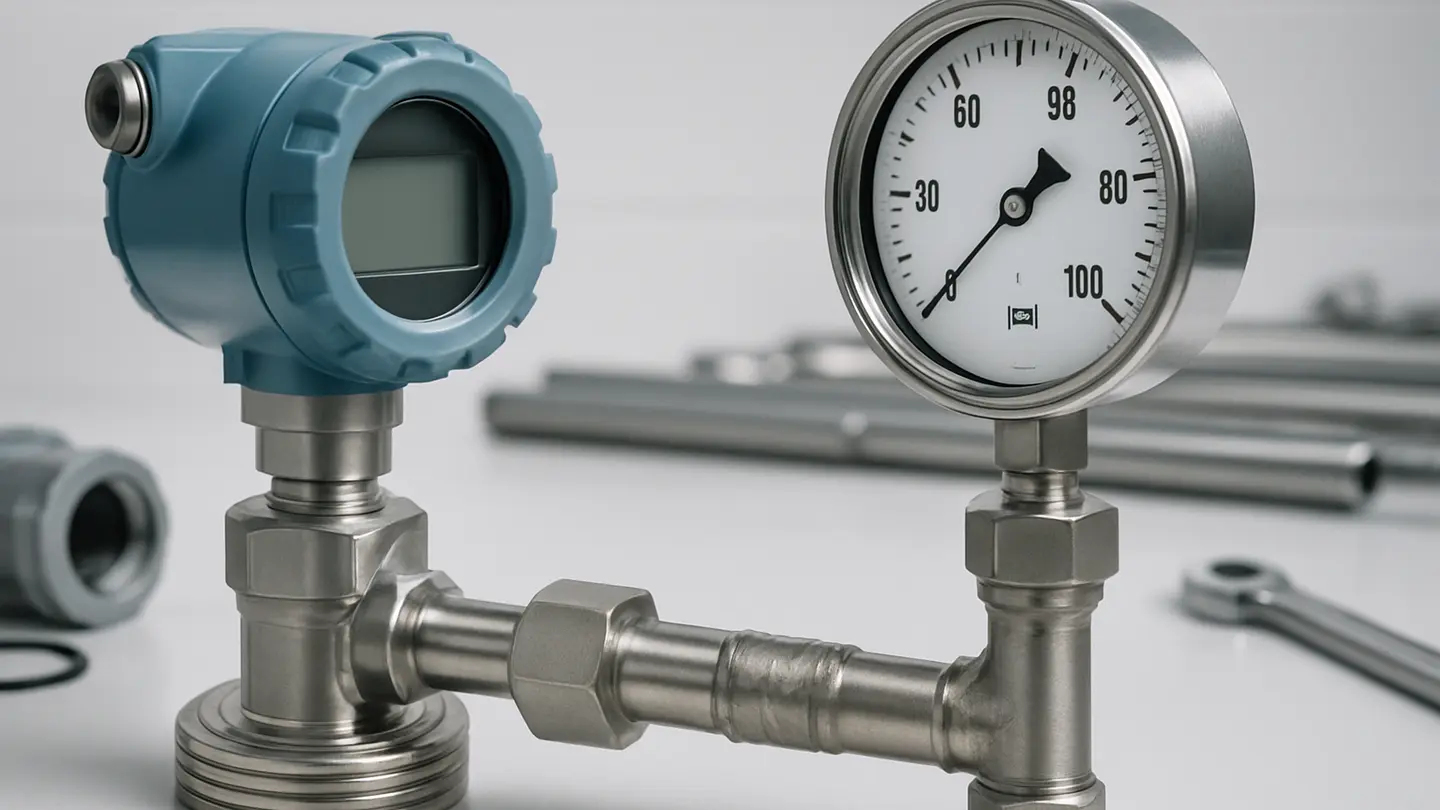

Direct Mounting With Heat-Dissipation Accessories

Direct mounting may be necessary where remote mounting is impractical or where the installation requires the gauge close to the process connection. In these cases, rigid heat-dissipation accessories can be installed between the process and the instrument.

Examples include compact tube-style devices, finned heat-dissipation elements, coil siphons, and pigtail siphons. These accessories increase the heat-transfer path and reduce the temperature reaching the gauge.

Coil and pigtail siphons are commonly used in steam service. Their geometry allows a water-filled section to form between the steam process and the gauge. This water provides a thermal barrier and helps protect the instrument from direct steam temperature exposure. The loop also helps reduce exposure to water hammer.

Pigtail siphons are generally selected for vertical installation arrangements, while coil siphons are commonly used where the installation orientation is horizontal. The correct configuration depends on the piping layout, drainability, support, and manufacturer guidance.

Before installation in steam service, the siphon loop is filled with water. An empty siphon does not provide the intended thermal barrier at startup.

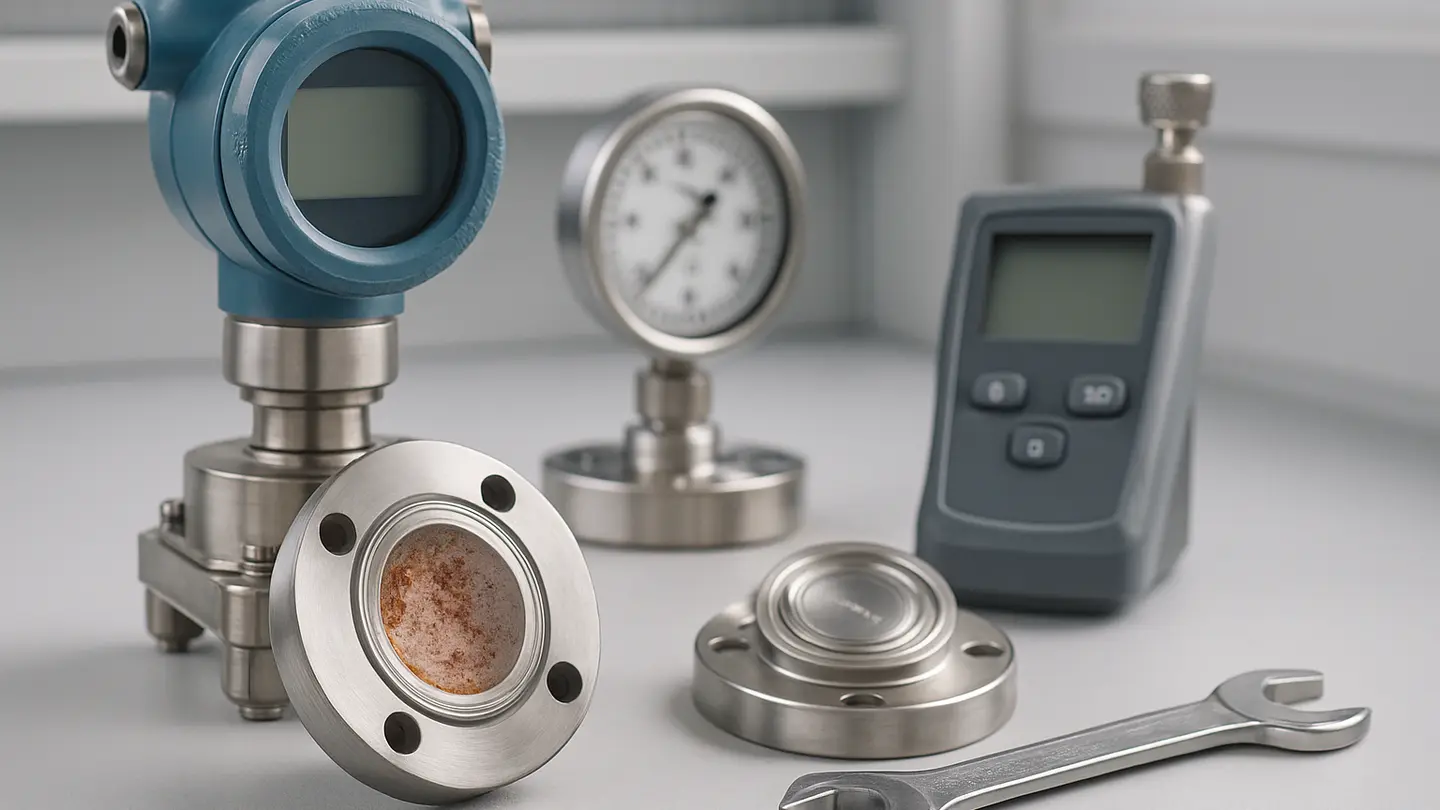

Diaphragm Seals for Thermal Isolation

A diaphragm seal, also called an isolator, separates the pressure instrument from direct contact with the process medium. The process pressure deflects a flexible diaphragm, and the pressure is transmitted to the instrument through a filled system.

Diaphragm seals can reduce the process-temperature exposure reaching the pressure gauge. They are also useful when the medium is corrosive, viscous, sanitary, prone to plugging, or unsuitable for direct contact with the gauge’s sensing element.

Thermal performance depends on the complete seal assembly, including diaphragm design, lower housing, fill system, process connection, capillary length where used, mounting orientation, and surrounding conditions. Seal fill fluid must remain suitable across the expected temperature range. A diaphragm seal can solve one problem while introducing others, such as added response time or temperature-related changes in fill-fluid volume, so the assembly should be evaluated as a system.

How to Evaluate Temperature Limits for a Digital Pressure Gauge

Selection should begin with the actual application rather than only the nominal line temperature. Review the complete measurement assembly and identify every temperature source that can influence performance.

A practical evaluation checklist includes:

Ambient temperature: What air temperature surrounds the gauge during normal operation and extreme weather?
Process temperature: What temperature reaches the wetted connection and sensor?
Storage conditions: What temperatures may occur during warehousing, transport, shutdown, or spare-part storage?
Pressure range: Does the selected sensor range remain appropriate under the full temperature and pressure cycle?
Medium compatibility: Are wetted materials, seals, diaphragm materials, and fill fluids compatible with the process?
Installation location: Is the gauge near radiant heat, hot equipment, direct sunlight, freezing air, or enclosed electronics?
Temperature-change rate: Will startup, steam introduction, washdown, batch processing, or weather create rapid thermal changes?
Accessory limits: Are fittings, capillary lines, siphons, valves, seals, wiring, displays, and enclosures rated for the same conditions?

Review separate published limits for ambient operating temperature, process temperature, compensated accuracy range, and storage temperature. These categories may differ substantially. A gauge can remain physically intact at a temperature where its specified accuracy no longer applies.

Verify Performance Under Actual Operating Conditions

The best installation decision considers more than steady-state temperature. A gauge may appear acceptable during normal production but experience more severe conditions during startup, shutdown, cleaning, washdown, process upset, seasonal weather, or maintenance.

Rapid thermal cycling deserves particular attention. Repeated heating and cooling can accelerate seal aging, loosen connections, fatigue components, and create recurring calibration shifts. Field validation may be appropriate when the application includes large temperature changes, even if the nominal published ratings appear acceptable.

During inspection and maintenance, look for signs that temperature is affecting the pressure instrument:

Slower-than-expected pressure response
Unstable or drifting readings
Poor display readability or delayed display refresh
Discoloration of the dial, display window, or enclosure
Cracked, hardened, swollen, or degraded seals
Leakage at fittings, seals, or connections
Evidence of overheating near the process connection
Calibration drift compared with a suitable reference

Temperature effects are manageable when they are treated as a system-level design issue. Selecting a suitable digital pressure gauge, respecting its separate temperature limits, allowing time for thermal equilibrium, and using appropriate isolation methods can protect both measurement accuracy and instrument service life.
