ASME B40.100 vs. EN 837-1: Key Differences in Pressure Gauge Standards
What Do ASME B40.100 and EN 837-1 Cover?
Pressure gauges translate process pressure into a readable indication. In many industrial applications, that indication supports operating decisions, maintenance activities, alarm verification, and safe equipment isolation. Gauge standards help manufacturers, purchasers, and users establish common expectations for construction, accuracy, testing, and marking.
The two standards most often compared for analogue pressure gauges are ASME B40.100 and EN 837-1. They overlap in important areas, but they do not have identical scope or terminology.
ASME B40.100, Pressure Gauges and Gauge Attachments, covers a broad family of pressure-indicating instruments and related accessories. Its scope includes mechanical pressure gauges, vacuum gauges, compound gauges, gauge attachments, diaphragm seals, snubbers or pulsation dampeners, and pressure-limiting or overpressure-protection devices. It also addresses digital pressure gauges within its product scope.
The standard should not be confused with ASME B40.1. ASME B40.1 was historically associated with elastic-element dial pressure gauges, while ASME B40.100 is the broader current document commonly referenced for pressure gauges and gauge attachments. A project specification should always identify the required document and edition rather than using “B40.1” or “B40” as informal shorthand.
EN 837-1 has a narrower focus. Its title is Pressure gauges — Part 1: Bourdon tube pressure gauges — Dimensions, metrology, requirements and testing. It applies specifically to Bourdon-tube pressure gauges, including pressure gauges, vacuum gauges, and compound gauges. Bourdon tubes are curved, flattened tubes that tend to straighten as internal pressure rises. Their movement is mechanically linked to a pointer and dial.
EN 837-1 includes requirements and test methods associated with both type evaluation and production testing. In practical terms, this means the standard addresses whether a gauge design can meet applicable requirements and whether individual manufactured instruments receive the required checks before release.
Neither standard should be treated as a complete specification by itself. A gauge can comply with the relevant standard while still being unsuitable for a particular fluid, pressure cycle, installation location, or environmental condition.
How Do ASME B40.100 and EN 837-1 Differ?
The most useful way to approach ASME B40.100 vs EN 837-1 is not to look for a universal winner. Instead, compare the specific characteristics that affect interchangeability:
- Measurement units and customary connection practices
- Accuracy grades and how tolerances are expressed
- Gauge-size terminology
- Gauge type and accessory scope
- Project, customer, regional, and regulatory requirements
Both standards support dependable pressure indication, but a gauge designed around one market convention may not be a direct replacement for one designed around another. For example, two gauges may have similar pressure ranges and outwardly similar diameters but use different threads, different pressure units, different accuracy expressions, or different nominal size definitions.
A replacement decision should therefore begin with the full instrument data sheet, process connection details, operating range, and installation requirements—not only the standard printed on the dial.

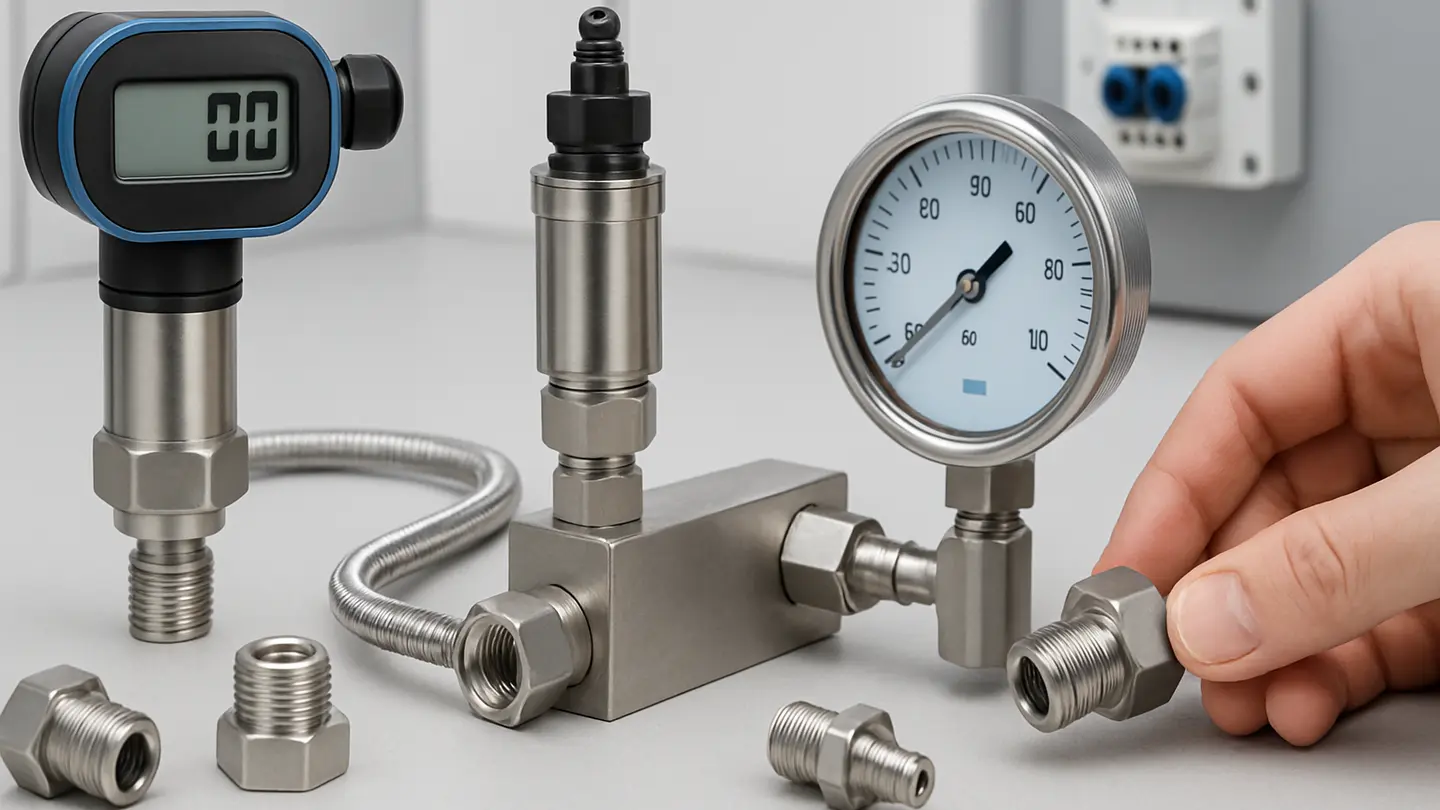

Preferred Units of Measurement and Process Connections
North American pressure-gauge specifications commonly use pounds per square inch, or psi, along with inch-based dimensions and National Pipe Thread connections such as NPT. In many European and international applications, bar and millibar are common pressure units, dimensions are commonly stated in millimetres, and metric or BSP-style process connections are frequently encountered.
These are widespread market and application conventions, not a reason to assume that every ASME-marked gauge must use psi and NPT or that every EN 837-1 gauge must use bar and metric threads. Manufacturers can supply gauges with different pressure scales and connection options where the design and applicable requirements allow.
The gauge standard alone does not fully define the mating process connection. A complete specification should separately state:
| Item to specify | Why it matters |
|---|---|
| Pressure unit | Prevents misreading between psi, bar, kPa, MPa, vacuum units, and compound scales |
| Pressure range | Determines usable operating range and pointer resolution |
| Thread designation | Prevents mismatch between NPT, BSPP, BSPT, metric, and other thread forms |
| Thread size | Defines the physical interface, such as 1/4 in. or 1/2 in. |
| Sealing method | Determines whether sealing occurs on threads, a gasket face, cone, flare, or other interface |
| Process mating connection | Confirms compatibility with the piping, manifold, seal, or equipment nozzle |
NPT and BSP threads are a common source of installation errors because they can appear similar but have different geometry and sealing behavior. Thread engagement alone is not proof of compatibility. The process connection, seal type, and rated pressure must all be confirmed before installation.
Accuracy Classes and Tolerance Expressions
Accuracy is one of the most important differences between ASME B40.100 and EN 837-1, particularly because the two standards express some grades differently.
ASME B40.100 uses both “A” accuracy grades and numerical “A” grades. The distinction is significant.
The higher-accuracy ASME grades 1A, 2A, 3A, and 4A are expressed as a percentage of span across the full scale. Commonly referenced values are:
| ASME grade | Permissible error as percentage of span |
|---|---|
| 1A | ±1.0% |
| 2A | ±0.5% |
| 3A | ±0.25% |
| 4A | ±0.1% |
The conventional ASME Grades A, B, and C use different permissible errors over different portions of the scale. The scale is divided into the lower quarter, middle half, and upper quarter.
| ASME grade | Lower quarter | Middle half | Upper quarter |
|---|---|---|---|
| A | ±2% | ±1% | ±2% |
| B | ±3% | ±2% | ±3% |
| C | ±4% | ±3% | ±4% |
Grade D is generally expressed as ±5% of span over the full scale.
This segmented approach reflects a practical feature of analogue gauges: mechanical indication can be less accurate near the ends of travel than in the central portion of the dial. When comparing a Grade A, B, or C ASME gauge with an EN gauge, it is essential to compare tolerance at the actual operating point rather than only comparing a single number on a data sheet.
EN 837-1 uses accuracy classes expressed as a percentage of full scale, or span. Common EN 837-1 classes include 0.1, 0.25, 0.6, 1, 1.6, 2.5, and 4. A Class 1 gauge, for example, has a maximum permissible error of ±1% of span under applicable reference conditions.
The wording “of span” matters. Consider a 0 to 100 bar gauge with a ±1% of span accuracy class. One percent of the 100 bar span equals 1 bar, so the permissible error is ±1 bar—not ±1% of the current reading. At a true pressure of 10 bar, a ±1 bar indication error represents a much larger percentage of reading than it does at 90 bar.
Accuracy class alone does not represent total uncertainty in service. Actual pressure indication can also be affected by:
- Pulsation and rapid pressure cycling
- Ambient and process temperature
- Vibration and mounting orientation
- Pointer readability and parallax
- Static pressure level relative to full scale
- Hysteresis, friction, and mechanical wear
- Calibration condition
- Diaphragm-seal fill-fluid effects where seals are installed
For this reason, a gauge should normally be selected so normal operating pressure falls in a useful portion of its scale rather than near zero or continuously near full-scale pressure.
Gauge Size: Dial Diameter vs. Case Diameter
Gauge diameter affects readability. A larger visible dial generally makes it easier to distinguish pointer position, read graduations, and identify pressure changes from a greater distance. This can be especially important on elevated pipe racks, compressor skids, outdoor equipment, and large process vessels.
ASME B40.100 commonly identifies gauge size by nominal dial diameter in inch-based sizes. EN 837-1 commonly uses nominal case diameter in millimetres. These descriptions are related, but they are not necessarily interchangeable.
A nominal case diameter includes the outside body dimension of the instrument. The readable dial area inside that case may be smaller because of the bezel, retaining ring, window, and internal clearance. Therefore, two gauges with similar-looking external dimensions can have different visible scale diameters.
Straight unit conversion also does not establish an equivalent gauge size:
- 3.5 inches equals 88.9 mm.
- 4.5 inches equals 114.3 mm.
- 6 inches equals 152.4 mm.
A 3.5-inch gauge is therefore not dimensionally identical to a 100 mm gauge, and a 4.5-inch gauge is not dimensionally identical to a 100 mm gauge. Similarly, a 6-inch gauge and a 160 mm gauge are close in general size but are not the same nominal dimension.
When replacing a gauge, confirm the actual case dimensions, dial visibility, mounting pattern, connection location, clearance around the instrument, and required viewing distance. Do not rely only on labels such as “4-inch,” “100 mm,” or “160 mm.”
How to Specify a Pressure Gauge When Standards Differ
A robust gauge specification is standards-neutral in the sense that it defines the application first and then identifies the applicable standard. The following checklist helps avoid ambiguity.
| Specification item | Questions to answer |
|---|---|
| Applicable standard and edition | Is ASME B40.100, EN 837-1, another standard, or a customer-specific requirement required? |
| Gauge type | Bourdon tube, diaphragm, capsule, digital, differential, or another design? |
| Pressure range | What are the minimum, normal, maximum, vacuum, and transient pressures? |
| Operating pressure | Will normal operation occur in the useful central portion of the scale? |
| Accuracy requirement | Is the requirement based on full span, a scale segment, or a defined operating point? |
| Pressure units | psi, bar, kPa, MPa, vacuum units, dual scale, or another unit? |
| Gauge size | What dial visibility and viewing distance are required? |
| Process connection | What thread, size, location, sealing method, and pressure rating are needed? |
| Wetted materials | Are the socket, Bourdon tube, diaphragm, and seal materials compatible with the process medium? |
| Environmental conditions | Is the gauge exposed to vibration, weather, washdown, heat, dust, corrosive atmosphere, or hazardous-area requirements? |
| Mounting arrangement | Bottom, back, panel, surface, U-clamp, or flush mounting? |
| Accessories | Is a snubber, diaphragm seal, siphon, restrictor, or pressure-limiting device required? |
When equipment will be delivered across regions, the customer specification and local regulations may determine which standard, thread form, pressure unit, or marking convention is mandatory. A technically similar gauge may still be unacceptable if it does not match the required procurement specification.
Account for Process Conditions and Gauge Protection
Gauge reliability depends heavily on process conditions. A standard-compliant gauge can fail prematurely if its design or accessories are not appropriate for the service.
Pulsation is common near reciprocating pumps, compressors, and hydraulic equipment. Repeated pointer movement can reduce readability and accelerate wear. Snubbers, restrictors, or dampeners may reduce the pressure fluctuation transmitted to the sensing element.
Pressure spikes can exceed the nominal operating pressure even where the average system pressure appears acceptable. Pressure-limiting devices and overpressure protectors may be considered where short-duration overpressure is possible, but their suitability depends on response characteristics, pressure range, and the process duty.
Diaphragm seals isolate the gauge from corrosive, viscous, crystallizing, sanitary, high-temperature, or plugging media. The seal diaphragm transfers process pressure through a fill fluid to the gauge sensing element. This protects the instrument but can introduce temperature effects, response limitations, and installation considerations. Seal selection must account for process compatibility, fill fluid, capillary length where used, and allowable temperature.
Vibration can loosen components, damage movement mechanisms, and make the pointer difficult to read. Liquid-filled gauges may reduce the visible effect of vibration and damp pointer movement, although fill fluid also has temperature-related behavior and may not solve the underlying installation problem.
Accessories should be selected using the relevant standard, the actual process conditions, and the manufacturer’s instructions. They should not be added as generic remedies without confirming pressure rating, material compatibility, and possible effects on response time.
When a Digital Pressure Gauge Requires Additional Review
EN 837-1 should not automatically be treated as a complete standard for digital pressure gauges. Its central subject is Bourdon-tube pressure gauges, which are typically analogue mechanical instruments.
ASME B40.100 has broader relevance because it includes digital pressure gauges within its scope. Even so, compliance with a pressure-gauge standard does not automatically establish every requirement for an electronic pressure instrument.
A digital gauge specification may require additional review of:
- Sensor type, range, stability, and overload capability
- Display resolution and update rate
- Display visibility in bright light or low temperatures
- Battery type, battery life, and power-management behavior
- Environmental ingress protection and enclosure performance
- Electromagnetic compatibility requirements
- Electrical safety and hazardous-location requirements where applicable
- Calibration method, reference standard, and documentation
- Data logging, communications, alarms, or remote-output functions
Digital instruments can offer fine display resolution, but resolution is not the same as accuracy. A display that shows more decimal places does not necessarily provide lower measurement uncertainty. Sensor accuracy, calibration, temperature effects, and installation conditions still control the quality of the measurement.
Key Takeaway: Compare the Full Specification, Not Only the Standard Name
ASME B40.100 and EN 837-1 share the goal of supporting reliable pressure indication, but they differ in scope, terminology, accuracy expression, and dimensional conventions.
ASME B40.100 covers a wider range of pressure gauges and attachments, including relevant accessories and digital gauge considerations. EN 837-1 is specifically centered on Bourdon-tube pressure, vacuum, and compound gauges. Their accuracy systems should be compared carefully, particularly where ASME grades use different tolerance zones across the dial.
Neither standard is universally better. The appropriate choice depends on the gauge type, required accuracy, process medium, operating conditions, regional practices, customer requirements, and installation details. Before selecting or replacing a pressure gauge, confirm the required standard edition and review the complete instrument specification—from pressure range and connection thread to materials, accessories, and environmental exposure.
